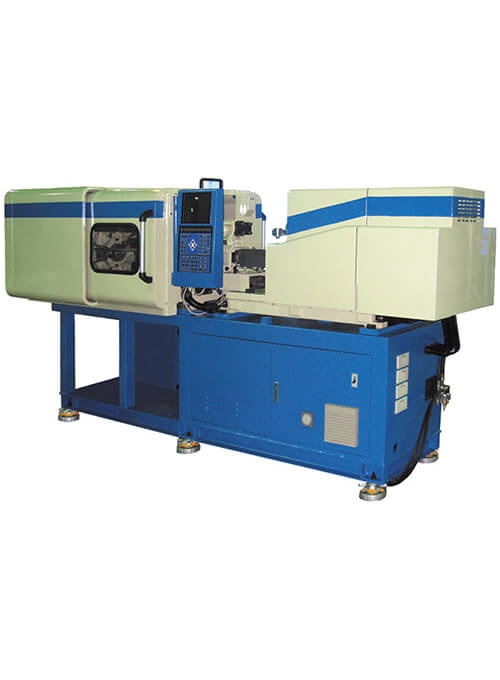

Product No : Model-EMH-50T
Product Description
  • No oil pollution and low noise, particulary suitable for clean-room production.
  • Maximum injection speed up to 300 mm/sec.
  • Electric servomotor driven mechanism ensures fast speed, high precision, and excellent stability of operations.
Inquiry
Screw Diameter mm Ø22
Injection Volume cm3 46
Injection Stroke mm 120
Injection Pressure kg/cm2 2500
Injection Speed cm3/sec 300
Clamping Force ton 50
Mould Thickness mm 150~300
Mould Opening Stroke mm 270
Distance between Tie Bars mm 310x310
Maximum Daylight mm 570
Ejector Stroke mm 70
Ejector Force ton 1.8
